Brand: Secureye
Part No: SP C2QN 15W

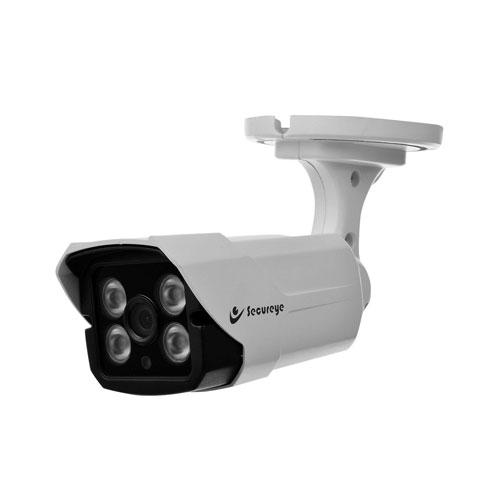

Product: SP C2QN 15W 2MP 50M IR IP Bullet CCTV Camera
Image Sensor: 1/2.8 CMOS
Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time: 1s-1/100000s
Day&Night: IR-cut ?lter with auto switch (ICR)
WDR: DWDR
S/N: >39dB
Angle Adjustment: 0-360o; 0-80o; 0-360o
Lens Type: Fixed
Focal Length: 4mm
Lens Mount: M12
Aperture Range: F1.6, Fixed
Field of View: 87.7o(H); 45o(V); 98.6o(D)
DORI DistanceDetect: 55.1m
DORI DistanceObserve: 21.8m
DORI DistanceRecognize: 11.0m
DORI DistanceIdentify: 5.5m
DORI DistanceIlluminator: IR LEDs: 2
DORI DistanceIR Distance: 30m
DORI Distance Wavelength: 850nm
DORI Distance White LEDs: 2
DORI Distance Whitelight Distance: 15m
Compression Standard: Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate: 32k-6Mbps
Audio Compression: G.711A/G.711U/ADPCM_D
Audio Sampling Rate: 8kHz/32kHz/48kHz
Image Max. Resolution: 1920×1080@30fps
Main StreamPAL: 25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC: 30fps(1920×1080,1280×720, 640×480, 704×480)
Sub Stream PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)
White Balance: Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/ Incandescent lamp/Locked white balance
ROI: 8 regions
OSD: regions;16*16/32*32/48*48
Privacy Mask: 4 regions
Defog: Yes
Alarm Trigger: Motion Detection;Mask Alarm:IP Address Con?ict
Linkage Method: Trigger Warmlight;Trigger Capture
Video Analytics: Tripwire;Perimeter
Network Protocols: HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP
System Compatibility: P2P(Mutually exclusive with Pro?le G); Onvif Pro?le S/T;CGI;MIL STONE
Remote Connection: <2
PC CMS Software: Secureye Smart Client
Mobile APP: Phoenix Pro
Web: IE10+:Firefox52+;Edge89+;Safari11+;Chrome57+
Communication Interface: 1RJ45 10M/ 100M self adaptive Ethernet port
Power Supply: DC12V+25%, MAX 6.5W; POE 802.3af, MAX 7W
Protection: Surge Protection 2000V; Lightning Proof 6000V
Boundary Dimensions: 117(L)117(W)96(H)mm
Package Dimensions: 140(L)140(W)120(H)mm
Gross Weight: 0.35Kg
Net Weight: 0.25Kg
