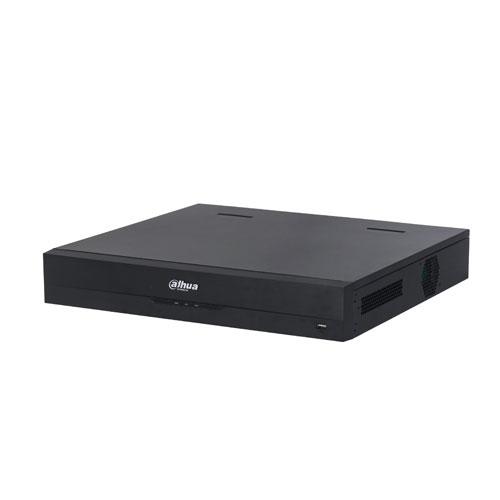

Dahua NVR5464 EI 64 Channels 4HDD 1U Network Video Recorder Chennai
Dahua NVR5464 EI 64 Channels 4HDD 1U Network Video Recorder Price in Hyderabad
- Brand: Dahua
- Product: NVR5464-EI 64CH 4HDD 1.5U Network Video Recorder
- Access Channel: 64 Channels
- Network Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
- Resolution: 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
- Decoding Capability: AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel
- Video Output: 1 HDMI, 1 VGA Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous? HDMI: 1920× 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080.
- Multi-screen Display: Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
- Audio Input: 1-channel RCA
- Audio Output: 2-channel RCA
- Alarm Input: 16 channels
- Alarm Output: 6 channels (1-channel 12 V 1 A output?
- Disk Interface: 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
- eSATA: 1
- RS-232: 1
- RS-485: 1 (half-duplex serial communication)
- USB: 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
- HDMI: 2
- VGA: 2
- Network Port: 2 (10/100/1000 Mbps Ethernet port, RJ-45)
- Dimensions: 440.0 mm × 415.1 mm x 70.0 mm
- weight: 6.11 kg (13.47 lb)
Call For Best Price
